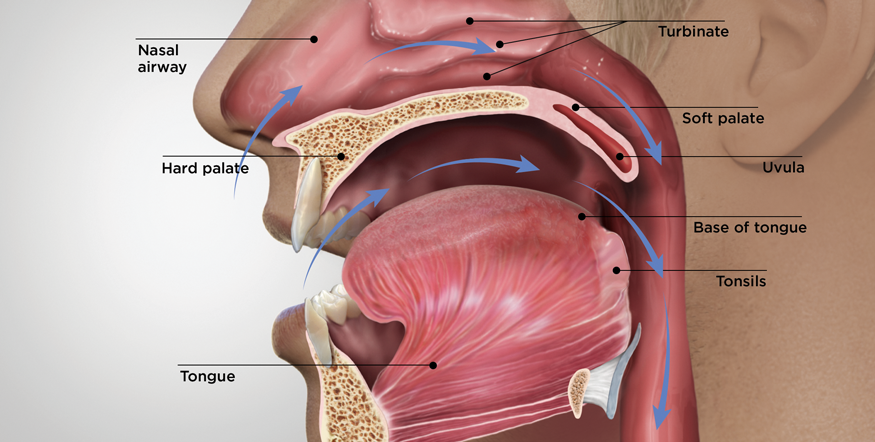

Sleep breathing disorders, such as obstructive sleep apnea (OSA) and snoring, are the result of the unconscious collapse of the pharyngeal airway during sleep. OSA and snoring both have strong associations with the potential development of cardiovascular disease from vascular oxidative stress-inflammation (VOS).1 Oxidative stress induced by nocturnal hypoxia generates reactive oxygen species from leukocytes, reduced plasma levels of nitrite, increased lipid peroxidation, and lower antioxidant capacity. This is the mechanism that results in cardiovascular disease, for both adults and children. VOS can create increased blood clotting, which can lead to stroke and heart attack.
Meta-analyses by multiple groups have found the use of oral appliances for OSA to be equivalent to continuous positive airway pressure (CPAP) at reducing blood pressure in adults.2-4 Snoring patients have been shown to have a five-times increased risk of OSA.5 In women, regular snoring is associated with increased risk of coronary heart disease (risk ratio [RR] 2.18) and stroke (RR 1.88).6 Snoring was found to be a greater determinant factor of VOS than OSA7 and leads to an increased risk of carotid artery atherosclerosis.8,9
There are four components of OSA: Pcrit (critical pressure to collapse the pharyngeal airway), muscle tonus or recruitment, loop gain (response to apnea-transition to breathing), and arousal threshold (length of time it takes to be awakened to begin breathing). Pcrit and muscle tonus can be affected by the use of oral appliances, medications, and positive pressure, as well as surgery, orthopedic development in children, and myofunctional therapy, with the latter having been shown to reduce OSA by 50% in adults and 62% in children.10 Conversely, loop gain and arousal threshold are neurologic conditions. Carbon dioxide sensitivity is the main factor in these mechanisms. They are treated with medications, nasal breathing training, and exercises.
This article focuses on the function, design, and materials for optimal oral appliance therapy (OAT) to treat snoring and OSA.
Background on Oral Appliances
In the early 20th century, French dental surgeon Pierre Robin was the first to identify OSA in children with micrognathia (ie, a small lower jaw) and glossoptosis (ie, posterior tongue displacement into the pharynx). He produced the first oral appliance, which he termed the "monobloc." A detailed review of the history of OAT can be found in "The evolution of oral appliance therapy for snoring and sleep apnea," written by Demko in 2018.11 In 2005, the American Academy of Sleep Medicine's (AASM) practice parameters made the following recommendation: "[Oral appliances] are indicated for use in patients with mild to moderate OSA who prefer them to CPAP therapy, or who do not respond to, are not appropriate candidates for, or who fail treatment attempts with CPAP."12
The apnea-hypopnea index (AHI) is the combined average number of apneas and hypopneas that occur per hour of sleep. According to the AASM, AHI is categorized as mild (5 to <15 events per hour), moderate (15 to <30 events per hour), and severe (≥30 events per hour). Overall, OAT for OSA as compared to positive airway pressure (PAP) is less effective in AHI reduction; however, it is equally efficacious in symptom control, health benefits, and affordability. OAT is superior to PAP in adherence, tolerance, patient partner acceptance, and convenience.13 In patients with mild to moderate OSA, research has demonstrated that there are no differences in AHI reduction between OAT and nasal CPAP.14 The average compliance with OAT is more than 6 to 7 hours per night,15-18 while the average compliance with PAP is around 3.3 hours per night.19,20
French physician and researcher Christian Guilleminault, the developer of the AHI system, stated that the ultimate goal in the treatment of sleep apnea is the transformation of oral breathing to nasal breathing, both day and night.21 Regardless of the level of sleep pathology (eg, snoring, upper airway resistance syndrome, or OSA), four points of respiratory obstruction must be patent for proper breathing during sleep, as illustrated in Figure 1: the nasal valve, nasal pharynx, velopharynx, and oropharynx.22
Mechanism of Action
Oral appliances work by giving tonus to the muscles of the throat by mandibular positioning, specifically the velopharynx (ie, the narrowest portion of the pharyngeal airway, involved in 81% of patient cases) and the oropharynx (involved in 21.9% of patient cases).22 They directly affect muscle tonus (muscle responsiveness) and Pcrit in these areas.23 In addition, besides mandibular position, tongue position also requires management for effective treatment. Tongue restraining devices have been shown to affect upper airway structures in OSA in a similar manner to oral appliances.24 The use of a tongue positioner added to an oral appliance base can increase efficacy without discomfort by applying active force to the tongue in patients who are incomplete responders.25
The two most significant predictive factors in OAT success are body mass index and nasal airway resistance.26 Nasal dilators have become an important component of OSA therapy. Nasal valve dilation has been shown to decrease intraluminal pressures in the oropharynx via the Starling resistor model, reducing apneic events.27 The Starling resistor model states that the pharyngeal airway (muscle) experiences increased extraluminal pressure as each end of the airway's cartilage (nasal valve and epiglottis) is narrowed. A recent multicenter retrospective analysis found a statistically significant association between nasal valve compromise (Figure 2) and temporomandibular joint (TMJ) capsulitis (odds ratio 3.73) and facial and cervical myositis (odds ratio 6.97).28
Appliance Design
Oral appliances used to treat snoring and OSA have the following capabilities and/or characteristics: maintain and/or advance the mandible in the supine position; be titratable, durable, retentive, adjustable, comfortable, and minimally invasive; provide minimal tooth movement; reduce the risk of temporomandibular disorder (TMD) or joint pain; and be US Food and Drug Administration (FDA)-cleared. These factors are especially important in light of the fact that 50% of patients discontinue use of an oral appliance in the first year.29
Oral appliances are essentially either monoblock or bi-block. Monoblock style is a one-piece device that engages both the upper and lower dentitions, while a bi-block device comprises separate upper and lower appliances that are joined by a connecting piece, allowing for adjustment or titration. Monoblock was found to be more effective than bi-block in a systematic review and meta-analysis.30
Immobilization of the TMJs while sleeping may lead to joint and facial muscle symptoms, as all joints require movement to lubricate. A normal rhythmic masticatory muscle activity occurs during sleep, which should not be confused with sleep bruxism. The protrusive advancement mechanisms in bi-block oral appliances are either elastics, rods, jack screws, hinges, or blocks for dorsal fin appliances. Hinge appliances may be lateral, such as the Herbst or lingual connector. Oral appliances typically are either made of acrylic (methyl methacrylate), have a pressure-molded base with acrylic, or are 3D-printed with type 12 nylon. Acrylic appliances are usually thicker than other types, so they have a greater effect on reducing oral volume. A summary of the advantages and disadvantages of the various oral appliance materials is provided below in the "Oral Appliance Materials" section.
It is important to note that Medicare has certain requirements for oral appliances, such as Herbst and hook mechanisms that act as "mechanical hinges." Also, oral appliances for OSA and snoring must be FDA-cleared for insurance coverage. Some insurance policies now require pricing, data, analysis, and coding (PDAC) certification.
Oral volume should always be considered when choosing an oral appliance design. Whether the patient has macroglossia, micrognathia, or any combination of anatomic compromise, appliances should be as thin and small as possible, as patients prefer appliances that are less bulky and minimize the interincisal vertical opening.31 The vertical changes that are necessary for appliance fabrication are balanced with lip size so the patient can maintain adequate lip seal during sleep and minimize drooling. The tongue should be managed (ie, prevented from retruding), especially in patients with tongues that retract on opening. Custom-made appliances generated from impressions or scans of the mouth and mounted on mechanical or virtual articulators have been found to be more effective and preferred by patients with snoring and/or OSA than premade over-the-counter devices.32,33
Oral Appliance Materials
Hard Acrylic
Advantages of oral appliances made of hard acrylic are that they can be adjusted or repaired easily at chairside-the appliance can be ground down it if it is too tight, or more acrylic can be added if it is too loose-and they are easy to insert and remove with the use of ball clasps. Additionally, if minor dental changes occur in the patient, hard acrylic can sometimes be modified rather than having to fabricate a new appliance. These appliances also complement most dentitions, and clasps can be added for stronger retention.
On the downside, hard acrylic appliances are very rigid; for patients with sensitivities, these appliances may feel tight and can irritate the gums and/or teeth. Also, because this material is less forgiving, it is critical to acquire accurate impressions to prevent chairside adjustment. Other drawbacks of hard acrylic appliances are that they wear over time with patients who brux, the rather bulky material may force the tongue to move posteriorly and reduce oral volume, and the porous material can leach, yielding a bad taste, irritation, and discoloration and attracting bacteria.34-37
Thermal Acrylic
Working with thermal acrylic oral appliances requires a learning curve for dentists, who must get a "feel" for how hot the water used for forming the appliance must be and how long the appliance must be left in the mouth before removing it. Also, more frequent replacement may be needed as compared to hard acrylic appliances, especially for clenchers or bruxers. These appliances also have a shorter shelf-life due to the composition of the material, as it breaks down over time due to its porosity.
There are numerous advantages to thermal acrylic, however. Because this material is soft and pliable at warm temperatures, it allows for comfortable and easy seating, which helps engage undercuts that harder materials such as acrylic cannot. It also provides better retention for a crowded dentition because the material can flex; clasps can be added for further retention. The pliability of thermal acrylic allows the material to flex over crowns and bridges, making it a good choice for patients with restorations, as well as those with sensitivities and edentulous patients (provided they have a good bony ridge).
Dual Laminate
These appliances possess the rigidity of hard acrylic externally with a soft inner liner that buffers the teeth/tissue. They have more "give," requiring less blockout, and they are recommended for patients with sensitive teeth or cosmetic dental work.
Disadvantages of dual laminate oral appliances include the following: they are not as durable as hard acrylic; the soft side can delaminate and absorb moisture; the porous material yellows over time and, depending on diet, may require more frequent replacement; and clasps and acrylic cannot be added for further retention. Moreover, these appliances can be difficult to adjust, as the material "gums up" when using a high-speed bur; low speed has little to no effect on the soft material.
Polyamide/Nylon
The introduction of type 12 nylon appliances, which are CAD/CAM printed devices, has been a momentous advancement, allowing for appliance size reduction and increased comfort, accuracy, and durability. These devices are designed using proprietary software specific to each manufacturer and printed using selective laser sintering technology that ensures a consistent and accurate device. Digital impressions are captured using intraoral or desktop scanners; offices are not required to own a scanner as laboratories can digitize stone models to an STL format. By transitioning to a digital process, offices can eliminate the patient discomfort and inconvenience of physical impressions and bite registrations as well as the need to store bulky physical models. The introduction of CAD design also allows laboratories to digitize their workflow, which greatly reduces the fabrication process and turnaround times. Design changes can be made with superior accuracy and minimal effort, allowing for a high degree of customizable devices to suit the complex anatomy of individual patients.
Other Factors Associated With Oral Appliances
Side effects such as jaw and muscle pain, drooling, tooth sensations, tongue tenderness, problems with swallowing, and bite changes are common with the use of oral appliances for snoring and OSA.38 Posterior open bite has been found to occur in almost 18% of patients using oral appliances for OSA.39 Clinically significant changes in occlusion are progressive in nature with appliance usage. These include reduction of overbite and overjet, less anterior crowding, increase in lower canine width, and molars assuming more of a class I relationship.40-42
OSA is strongly associated with TMD, primary headaches (migraine, tension type, cluster), and sleep bruxism.43 Conservative appliance introduction is important to minimize side effects. It has been demonstrated that the number of side effects increases as protrusion exceeds 50% from baseline.44 Bite techniques that reduce the need for protrusive adjustments, such as phonetics, minimize the risk of these side effects. A study comparing the George Gauge® (GG) and phonetic techniques found that they have equal efficacy; however, the phonetic technique required less than one adjustment per patient while the GG required 2.7 adjustments, starting at 50% protrusion.45 Because the phonetic technique is physiologic and 3-dimensional, minimal protrusion of the mandible is needed to achieve an increased volume and reduced collapse of the pharyngeal airway.46
For patients with severe apnea, predominately central apneas, obesity, a large tongue, small oral volume, TMD, TMJ osteoarthritis, temporal headaches, PAP compliance issues, or any combination of these conditions, hybrid therapy combining OAT and CPAP has been shown to be effective.47,48 Connecting a nasal PAP delivery device to the oral appliance lowers titration pressure and eliminates the use of head straps that can result in headache or aggravate patients prone to headaches and claustrophobia.
Conclusion
Many dental pathologies that dentists treat every day, such as bruxism, tooth wear, abfraction lesions, cracked teeth, periodontitis, and caries, are comorbid with OSA. The American Dental Association recommends that all dental patients be screened for sleep breathing disorders. Although custom-made oral appliances to treat snoring and OSA when compared to all levels of severity with PAP are less effective in AHI reduction, their usage is equally efficacious in symptom control, health benefits, and affordability. Moreover, positive pressure therapies have low utilization. OAT is superior to PAP in adherence, tolerance, patient partner acceptance, and convenience. In patients with mild to moderate OSA, no differences in AHI reduction have been shown between OAT and nasal CPAP. Sometimes hybrid therapy may be indicated, thus allowing dentists to participate in even the most severe cases of OSA.
Advances in technology have led to improvements in the design and fabrication of oral appliances to treat snoring and OSA. Training for the treatment of OSA in dental schools is still limited; however, it is increasing. OSA is associated with primary headaches, orofacial pain, and TMD. Nasal obstruction has been found to be comorbid with facial/cervical myositis and capsulitis of the TMJ. Because of the frequency of these conditions, all dentists should be aware of sleep breathing pathology. Special training is needed in this area, and board certification can be achieved through continuing education courses and written and oral examinations by accredited academies.
