Optimal surface preparation techniques for chemical and/or mechanical bonding to porcelain substrates are crucial to ensure clinical success when placing indirect porcelain restorations and, when required, repairing them intraorally. Clinicians are often confused regarding the most effective way to treat the intaglio surfaces of indirect porcelain restorations before placement with various adhesives and luting resins. They are often equally perplexed about the “ideal” surface treatment for the intraoral repair of preexisting porcelain restorations. This is not surprising, as there appears to be no clear consensus in the dental literature, among “opinion leaders,” or from dental manufacturers on exactly what the optimal surface treatment should, in fact, be. Dental laboratory technicians also appear to lack standardized protocols on how they should treat the surface of finished porcelain. For example, in 2007, the author spoke with the owners and/or ceramists from 11 different dental laboratories regarding their specific surface treatment protocol before sending out finished feldspathic porcelain veneers. All treated the inner surface of the veneers with hydrofluoric acid (HF). Only two knew the actual concentration of the HF they were using. Application times varied from as short as 30 seconds to as long as 10 minutes. Several laboratory technicians stated they simply etched the veneers until the surface looked “frosty.” Some laboratories sandblasted the veneers before HF treatment and some did not. After etching, some laboratories placed the veneers in an ultrasonic cleaner, some “steam” cleaned the veneers, some placed the veneers back in the oven at a low temperature to “burn off” any white “residue” left over from etching, and others merely rinsed them with tap water. Three laboratories stated they “sometimes” used a basic solution to “neutralize the acid” after HF treatment, although they were not sure if this was a necessary step. This author also questioned approximately 24 “opinion leaders” at a recent symposium1 regarding their recommendations for the intraoral repair of both composite and porcelain restorations. While there were many similarities, there were also significant differences, and no treatment protocols were exactly the same.
The lack of clear and consistent guidelines regarding the treatment of composite and porcelain surfaces raises several significant questions. Is there, in fact, an optimal surface treatment protocol for porcelain restorations before placement and for intraoral repair? Is it possible that several viable surface treatment options exist? Is it even practical to recommend a specific “universal” treatment protocol because of material differences (eg, not all porcelains are the same)?
This article will attempt to address these questions, provide some general guidelines, and no doubt raise additional questions regarding the management of porcelain surfaces. A good place to start is by examining what we “think” we know.
Bonding to Porcelain—Use of HF
HF is an inorganic acid capable of etching glass surfaces. It has been used for hundreds of years to create decorative designs and patterns on glass and various ceramic materials.2 It is also used as a precursor in the manufacturing of numerous pharmaceuticals, various polymers (eg, Teflon), and many other synthetic materials that contain fluorine.3 Contrary to what most dentists believe, because of its low tendency to dissociate into H+ and F- ions, HF is considered to be a relatively weak acid from a chemical standpoint. This doesn’t mean HF is not dangerous. Quite the contrary; due to its low dissociation potential, HF has the ability to readily penetrate skin tissues (often without causing an external burn),where it can cause extensive internal tissue damage, as well as alter blood calcium levels (due to the formation of CaF2), which can lead to dangerous heart arrythmias.4 There have been industrial accidents where death has occurred from accidental skin exposure to HF.5 The duration of exposure, the concentration of HF, and the total surface area affected will obviously have an effect on clinical outcomes relating to accidental dermal exposure.6 In typical dental applications (eg, the etching of porcelain veneers and the intraoral repair of fractured porcelain restorations), concentrations of 4% to 10% HF are typically used. In this author’s opinion, HF in this concentration range can be used safely for dental procedures, including intraoral repair, provided caution and common sense are employed. Whenever HF acid is used for intraoral repair, the use of appropriate barrier techniques, viscous HF gel formulations (ie, that stay where you put them), and continual visual observation during the application period are mandatory. For those dentists not comfortable with the intraoral use of HF, acidulated phosphate fluoride gel (APF) has been shown to have the ability to etch porcelain, although the application time must be considerably longer than for HF etching. One recent study showed that a 7- to 10-minute application of 1.23% APF gel on a leucite-containing porcelain (IPS Empress®, Ivoclar Vivadent, Inc, Amherst, NY) produced a shear bond strength to composite (Filtek™ Z250 Universal Restorative, 3M ESPE, St. Paul, MN) similar to a 4-minute etch with 9.6% HF.7 It should be pointed out that this same study showed that etching with 9.6% HF for 4 minutes resulted in a very definitive microscopic etching pattern, while etching for 7 to 10 minutes with 1.23% APF resulted in a pitted, but much smoother-appearing surface. This difference in surface morphology could be significant over the long term, and it would have been interesting to see what effect thermocyling of the samples, which was not done, would have had on bond strength. Also, it is unclear why the investigators used 9.6% HF for 4 minutes when the manufacturer of the porcelain tested recommends that 5% HF acid be used for only 60 seconds. It is possible that the bond strength to the HF-treated porcelain samples would have been even higher had the manufacturer’s recommended protocol been followed. Other studies have also shown that etching with APF, even with prolonged application times, results in very shallow etching patterns when compared with HF etching for much shorter time periods.8 Silica coating, followed by silane application, has also been explored as an alternative to HF etching of feldspathic-based porcelains. The authors of one study found that both the high and low leucite-containing feldspathic porcelains they tested had significantly higher tensile bond strength to composite when samples were first etched with HF followed by silane treatment, vs just silica coating followed by the application of silane.9 Still another study looking at alternatives to HF etching found that simply roughening porcelain surfaces, followed by treatment with 35% phosphoric acid gel and silane priming, was as effective as HF treated samples to bonded composite.10 Once again, thermocyling of the samples, which was not done, might have had a significant effect on the results. Other products also exist and are marketed as alternatives to HF etching of porcelain.

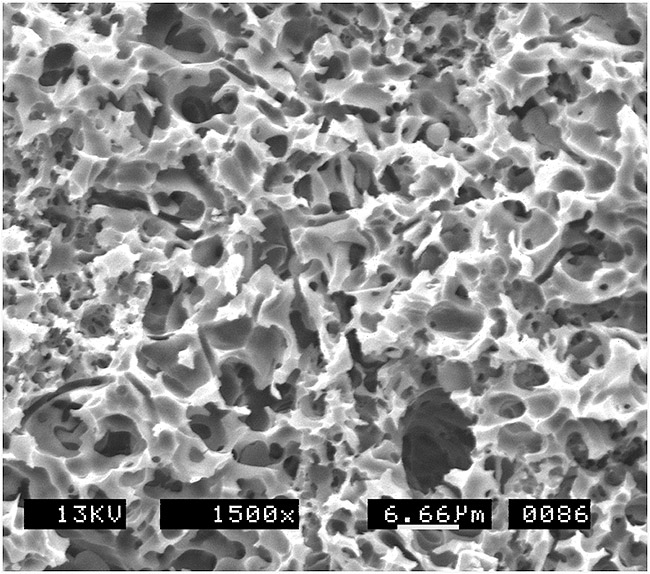

In this author’s opinion, while other alternatives do exist, they are less predictable, especially over the long term, when compared with HF-etched porcelain. Numerous in vitro studies clearly demonstrate that etching feldspathic-based porcelain with HF has the potential to significantly increase its bond strength to composite resin.10-16 Dental porcelain generally consists of an amorphous glassy phase or matrix and a crystalline phase. Treating porcelain with HF tends to selectively dissolve the glassy matrix, resulting in a microscopically porous, high-energy, and microretentive surface12,17,18 (Figure 1). In principle, this is similar to what happens to enamel surfaces after etching with phosphoric acid.
Several important questions arise when using HF to etch porcelain. Is there an optimal etching time and concentration of HF that should be used? Can porcelain be overetched? What is the white “residue” often seen on the surface of the porcelain after etching with HF, and how should it be handled? The first question is not easily answered. This is because the chemical and physical makeup of dental porcelain is variable, depending on the type of ceramic being used. Years ago, Calamia recommended adjusting the etching times and concentration of HF depending on the specific porcelain being treated.19 While all feldspathic porcelains contain silica dioxide (SiO2), aluminum oxide (Al2O3), and potassium oxide (K2O), the relative amount of each can vary considerably depending on the specific porcelain used. Alumina content, crystalline microstructure, size, and concentration can all influence HF etching times and concentrations.11,20,21 As an example, leucite crystals, which affect optical, thermal, and physical properties, are incorporated into the matrix of many dental porcelains.22,23 A study by Barghi showed a 50% leucite content porcelain (Fortress™, Chameleon Dental Products, Inc, Kansas City, KS) required a longer etching time (ie, 150 to 180 seconds) with 10% HF when compared with a 27% leucite content ceramic (Ceramco® II, DENTSPLY Ceramco, Burlington, NJ) that only required a 60-second etch with 10% HF.24 Some manufacturers recommend very specific HF concentrations and etching times for their ceramics. The manufacturer of one popular pressable ceramic (IPS Empress), which has a reported leucite concentration of 35% to 40%, recommends etching for 60 seconds with 5% HF.25,26 Longer etching times or higher concentrations of HF with this particular ceramic may actually result in “overetching” and weakening of the porcelain substrate by excessively degrading the surface.26 At least one study supports this contention and found that extending the etching time of this particular ceramic’s ingots from 1 to 2 minutes with 5% HF significantly decreased the biaxial flexure strength of the ceramic.27 The manufacturer of another popular pressable leucite reinforced ceramic (Authentic®, Jensen Industries, Inc, North Haven, CT) recommends “lightly sandblasting the internal surface with 50 µm Al2O3 at a maximum of 20 PSI and then placing 5% to 12% HF for 90 seconds to 5 minutes.”28 One logical interpretation of this is that dentists could use 12% HF for 90 seconds or 5% HF for 5 minutes. So, one manufacturer (Ivoclar Vivadent, Inc) recommends etching with 5% HF for 1 minute when treating the inner surface of its leucite containing pressable ceramic, and another manufacturer (Jensen Industries, Inc) appears to recommend etching with 5% HF for 5 minutes when treating its leucite containing pressable ceramic. Why there is such a difference in recommended 5% HF application times between these two ceramics is difficult to understand. It is certainly possible that a difference in leucite concentration, size/orientation of crystals, or microstructure might affect etching times. According to one source,29 the leucite concentration for the aforementioned popular pressable ceramic (Authentic) is approximately 8%, depending on the shade. This author was unable to corroborate this information despite an extensive Internet search and several phone and e-mail contacts with representatives of the manufacturer. At least one company representative suggested etching the ceramic with 7% HF for 1 to 2 minutes, although it was unclear on what this recommendation was based.30
Two lithium disilicate-based ceramics (IPS e.max® CAD, IPS e.max® Press, Ivoclar Vivadent, Inc) replaced the manufacturer’s now defunct product (IPS Empress® II).26 The manufacturer of these products recommends a very specific etching time of only 20 seconds with 5% HF,25,26 and studies exist supporting this protocol.17,31 Powder/liquid or “stackable” porcelains (Ceramco® 3 and Duceram® Plus, DENTSPLY Ceramco; Omega® 900 and VMK-68, Vident, Brea, CA; EX-3, Noritake Dental Supply Co, Ltd, Aichi, Japan; IPS d.SIGN®, Ivoclar Vivadent, Inc; Creation®, Jensen Industries, Inc) are used extensively in the fabrication of ceramic restorations. Some opinion leaders/studies recommend 90 seconds of etching with 10% HF for stackable feldspathic porcelains,32 while others recommend a 120- to 150-second etch with 9.5% HF.33 The manufacturers of two popular 9.5% HF etching gels (HF etching gel, Bisco, Inc, Schaumburg, IL; HF etching gel, Ultradent Products, Inc, South Jordan, UT) recommend etching times of 90 seconds (ie, the former manufacturer) and 60 seconds (ie, the latter manufacturer).34
In an unpublished study, Byoung Suh tested 10 different feldspathic porcelains (Synspar® and OPC®, Pentron Clinical Technologies, LLC, Wallingford, CT; IPS d.SIGN; CZR Press, Noritake Dental Supply Co, Ltd; Vintage™, Shofu Dental Corp, San Marcos, CA; Vita®, Vident; Initial, GC America, Inc, Alsip, IL; Ceramco® II and Duracem®, DENTSPLY Ceramco; and Creation, Jensen Industries, Inc) by HF etching (ie, 9.5% and 4%), followed by contact angle analysis and microscopic evaluation. He first particle-abraded the samples (ie, sandblasting) and found they all showed an acceptable microscopic etching pattern after a 4- to 5-minute etch with 4% HF. These same porcelains showed a similar etching pattern when 9.5% HF was used for 90 seconds.35 The authors of another study found statistically higher composite shear bond strength to several stackable porcelain disks when they were etched with 10% HF for 2 minutes as opposed to a longer etch of 4 minutes at the same HF concentration. They attributed the lower bond strength with the longer etching time of 4 minutes to “overetching” and actual weakening of the porcelain surface.36 The manufacturer of a popular laboratory ceramic etching gel sells a 12% to 13% HF etching gel for stackable porcelains (Etch-It Kit, American Dental Supply, Inc, Allentown, PA) and recommends what, to this author, appears to be a rather long etching time of 10 to 15 minutes. According to the manufacturer, this application time was based on observation of the contact angle of water droplets placed on ceramic surfaces and the microscopic appearance of the porcelain surface after etching for different time periods (no shear or tensile bond testing was performed).37 Interestingly, this same manufacturer sells another product marketed for pressed ceramics (Etch-It Kit for pressable porcelain, American Dental Supply, Inc) that uses 5% HF with a recommended etching time of only 30 to 60 seconds.

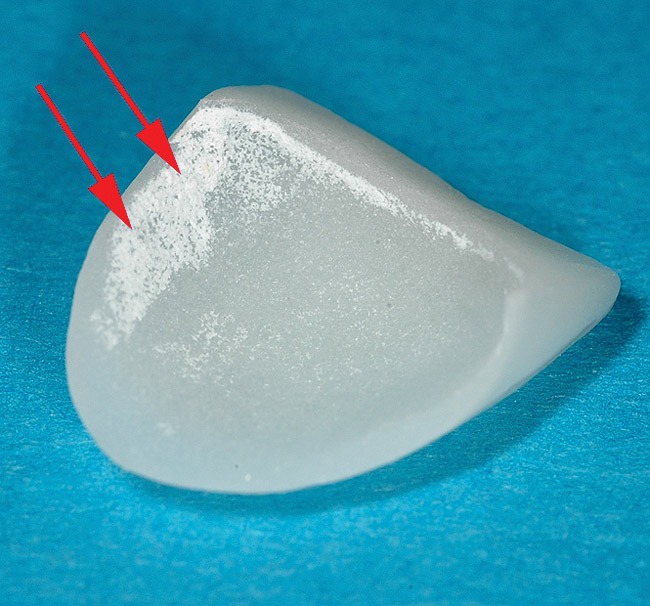

Most dentists and ceramists have noticed that a white “residue” sometimes remains on the surface of HF-etched porcelain restorations. At times this residue can be quite extensive and cover virtually the entire etched porcelain surface. The extent of this precipitate is no doubt related to the type of porcelain, concentration of HF, and the time of application. One study, through energy dispersive spectrometer analysis, determined this residue to consist of the reaction products of porcelain and HF.38 Basic chemistry has shown that when an acid and base react, various salts are produced as byproducts of the reaction. In the case of HF etching, the porcelain acts as a base, and when it reacts with HF, various insoluble metallic salts are formed.31 In this author’s opinion, the white residue consists not merely of “porcelain salts,” but also of numerous microscopic crystalline fragments exposed, possibly weakened by HF exposure, and displaced after the glassy matrix supporting them has been dissolved by HF and the porcelain surface washed and dried. This water insoluble “crystalline residue/salt mix” rather tenaciously adheres to the porcelain surface and is often difficult to remove. While many believe this white “frosting” to be indicative of a “good etch” of the porcelain, this is probably an inaccurate assessment. In fact, in this author’s opinion, if the white precipitate is excessive, this may be indicative of overetched porcelain (Figure 2). Several authors have discussed the potential for overetching porcelain and how this could adversely affect porcelain physical properties and/or bond strength to composite.15,27,36,39-42 In any case, this surface residue is a potential contaminant, and it makes sense to remove it before proceeding to the bonding phase of treatment.

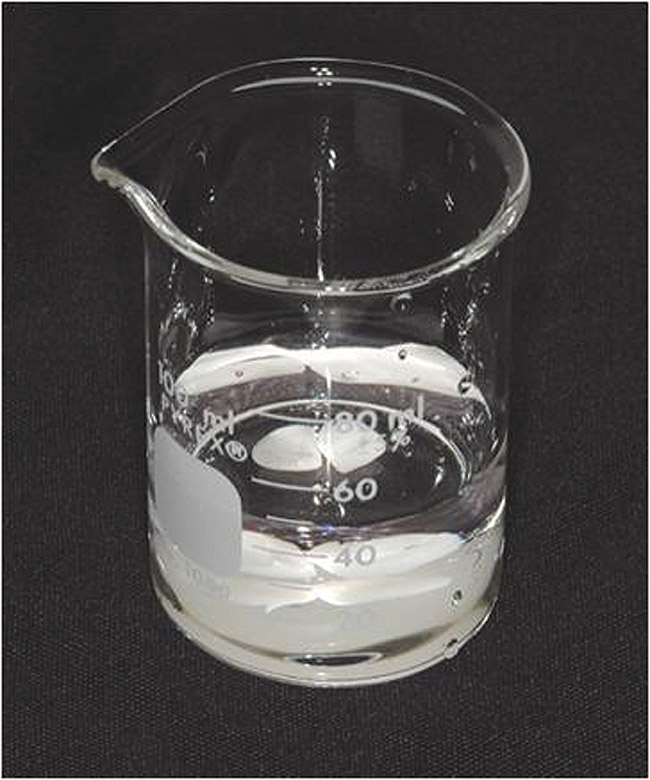

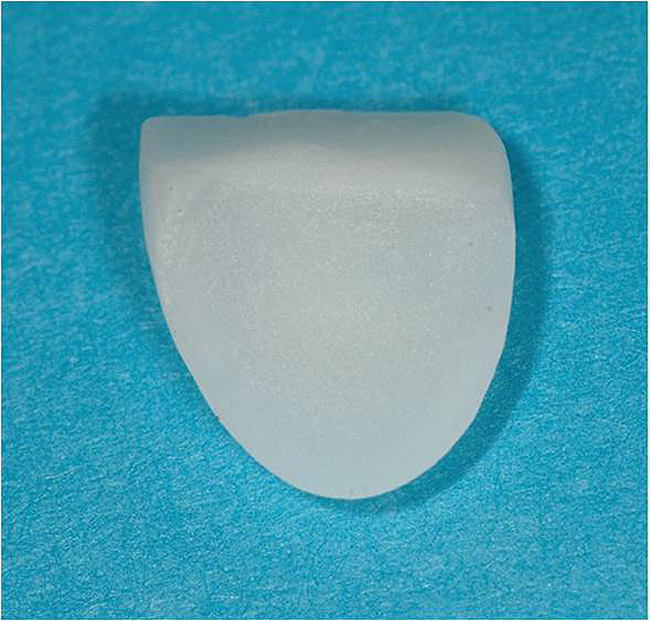

In this author’s experience, removal of this material with water alone is usually not effective, even after a vigorous air/water spray. Acetone or alcohol rubbing is only slightly more effective. This author has found that placing the etched restorations in an ethanol solution followed by ultrasonication for 5 minutes is usually, but not always, effective in removing any residue (Figure 3A, Figure 3B and Figure 3C). Sometimes light brushing with a toothbrush and/or longer ultrasonication times are also required. Other authors have recommended a similar protocol using distilled water.32 This author prefers an alcohol solution because it evaporates more easily than water and is probably a better solvent when it comes to removing potential contaminates (eg, grease and oils from handling, surfactants from acid gels, saliva, try-in paste residue, etc). Other authors have recommended the use of steam cleaning to remove any residue/salts left after HF etching of porcelain.43 In any case, the idea is to have an etched, clean, reactive, and high-energy surface before the next phase of porcelain surface preparation (ie, treatment with a silane coupling agent).
Bonding to Porcelain—Use of Silane
Silanes are a class of organic molecules that contain one or more silicon atoms. Dozens of different silane compounds exist, and they are used extensively in industry and manufacturing. The specific silane typically used in dentistry for both intraoral repair and treatment of ceramic restorations before placement is 3-methacryloxypropyltrimethoxysilane. (Note: all other use of the term “silane” in this article will refer specifically to this monomer.)

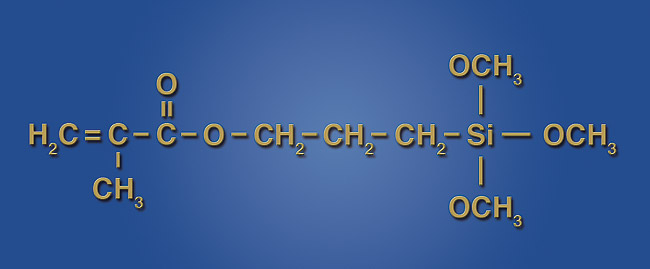

In dentistry, silane is potentially useful as a chemical coupler linking organics (ie, resin-based materials) to inorganics (eg, porcelain, some oxidized metals, and glass fillers in resin-based composites). A number of theories—ranging from its ability to simply act as a good wetting agent to the actual formation of covalent chemical bonds at the involved interfaces—exist regarding how silane actually functions.44-46 (This author highly recommends an excellent paper on silane chemistry and interactions written by Meyer Rosen in 1978 while working for Union Carbide.44) Infrared spectroscopy has shown that silane has the potential to react with hydroxyl (-OH) groups present on the surface of porcelain and metal substrates.46-48 To be able to function as a coupling agent and interact chemically with porcelain surfaces, silane must first be hydrolyzed.45 Acetic acid is commonly used to “activate” or hydrolyze silane by reacting with the three methoxy (-OCH3) groups located at one end of the silane molecule (Figure 4). Ideally, all three of the terminal methoxy groups will convert to -OH groups, although only one or two may actually react, resulting in incomplete hydrolysis and a potentially less effective silane.46,47
Single-bottle silanes are prehydrolyzed by the manufacturer and, while variations in chemistry exist, typically consist of 1% to 5% silane in a water/ethanol solution with an acetic acid adjusted pH of 4 to 5.44,45 Once hydrolyzed, silane molecules have a tendency to react with one another, forming high-molecular-weight oligomers44,47 (ie, polysiloxanes) that can actually function as a lubricant49-51 and potentially decrease bond strength to porcelain. It is important to remember that one-bottle prehydrolyzed silane solutions have a limited shelf life, and this author recommends refrigerated storage and replacement after 1 year, as well as bringing refrigerated silane to room temperature before use. If the silane solution appears at all cloudy or “milky” in appearance, or any type of precipitate is noticed, it should be discarded.
Two-bottle silane systems typically consist of an unhydrolyzed silane/ethanol solution in one container and an acetic acid/water solution in the other.35 These are mixed together by the clinician to hydrolyze the silane before application. It is unclear to this author precisely how much time is required for an acceptable degree of hydrolysis to occur once the solutions of two-part silane systems are mixed. The authors of one paper state “0.5 to 2 hours should be sufficient,”45 while another author cites a study showing hydrolysis was “complete 10 minutes after mixing with 0.1% acetic acid.”44 The authors of another study determined the hydrolysis rate of silane by the use of Raman spectroscopy and determined that 30 to 50 minutes was required.52 Still another study found that the two-part system (Silanit, Ivoclar Vivadent, Inc) they tested did not have the same degree of hydrolysis 20 minutes after activation when compared with the two prehydrolyzed systems they tested.47 One reputable manufacturer and respected researcher stated to this author that, based on contact angle analysis and in-house testing, its two-part silane was effective immediately after mixing, but performed optimally if left alone on the porcelain surface for 5 minutes after it was applied.35 This is probably an indication of further hydrolysis of the silane and/or increased chemical interaction with the porcelain during the waiting period. Two-bottle systems should have a longer shelf life than premixed systems and might be a better choice for dentists whose use of silane is infrequent.

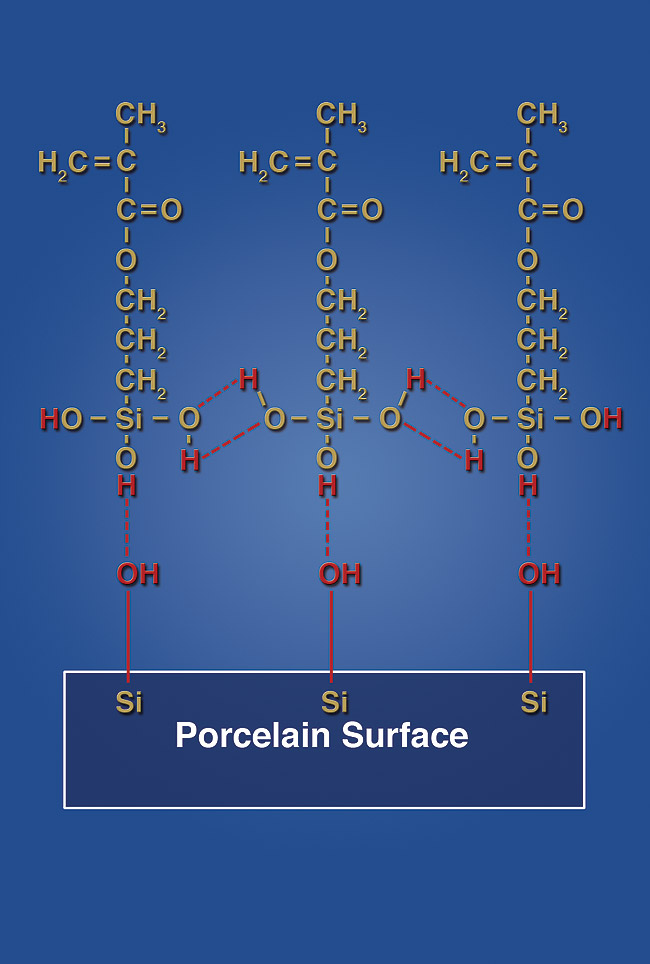

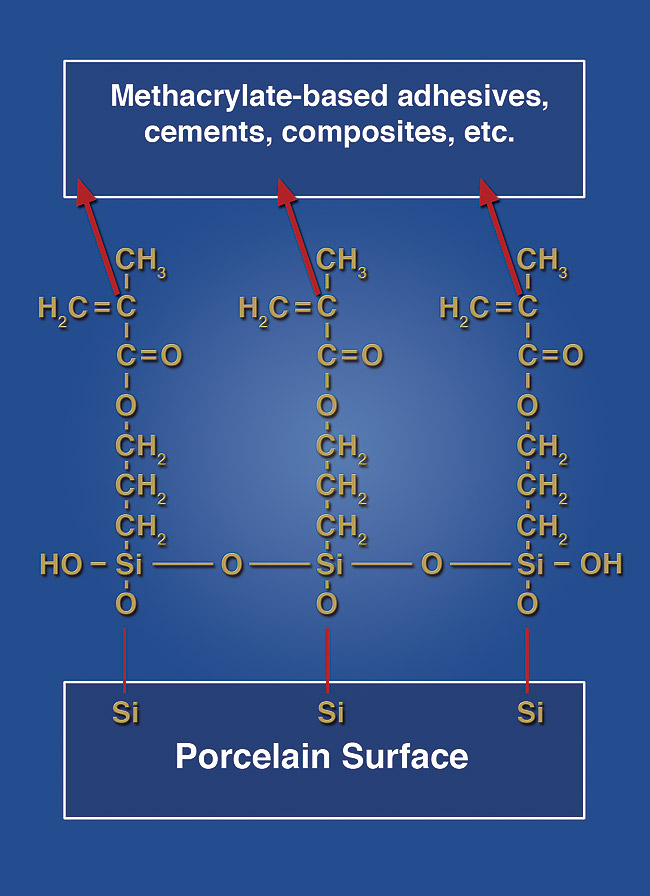

The important point to remember is that the goal of silane hydrolysis is to create terminal hydroxyl groups on each silane molecule. These hydroxyl groups are then capable of reacting directly with corresponding hydroxyl groups present on the surface of feldspathic porcelain (through oxidation of SiO2). The opposing hydroxyl groups interact with one another (via hydrogen bonding) and then, through a condensation polymerization (ie, loss of water) reaction, covalent bonds are formed between the silane and porcelain. Not only does the silane bond directly to the porcelain in this fashion, but also the individual silane molecules bond to one another, forming a polymer “network” on the porcelain surface44 (Figure 5 and Figure 6). In theory, the ideal situation would be one in which a “monolayer” of silane molecules lines the surface of the porcelain.45 Clinically, this is not possible, but it still makes sense to use the minimum amount of silane required, and this author recommends that no more than one to two coats be placed. Excessive application of silane could, in principle, create too thick a coating by consecutive silane layers bonding to each other, one on top of another, and creating an unnecessarily thick and intrinsically weak layer, which could be prone to cohesive failure. Clinically, the surface of the porcelain should NOT look shiny after silane application and drying. In this author’s opinion, a shiny surface on the porcelain after silane application and drying could be an indication of excessive silane deposition and, if seen, the surface should be sandblasted under low pressure, reetched with HF, cleaned with ethanol in an ultrasonic, and the silane re-applied. A properly silane-treated porcelain veneer visually appears essentially the same as it did before placing the silane (ie, matte/dull finish). Numerous studies have shown that heat treatment of silane-treated porcelain has the potential to significantly improve bond strength to composite.41,51,53-56 This author recommends that warm-air drying be used for 60 seconds to dry the surface of the porcelain after silane application. This is a simple and clinically feasible chairside procedure that has been shown in some studies to significantly improve bond strength of silane-treated porcelain to composite.51,54,55 Complete removal of water is critical as it is the basis behind the condensation polymerization reactions that allow silane to actually bond to porcelain. Warm/dry air is simply very effective at removing alcohol and water from the surface, and by “heating up” the substrate, one can speculate that the reaction rate will be accelerated, molecular interactions become more frequent, and the formation of chemical bonds occurs in greater numbers. Once the inorganic end of the silane molecule is bonded to the porcelain, the methacrylate group on the other end is free to bond (via free radical addition polymerization) with methacrylate groups in resin-based dental materials and adhesives (Figure 6).While there is equivocation in the literature,11 it appears that most studies find proper use of silane significantly improves the bond strength of resin-based composites to porcelain.10,15,57-60
Bonding to Porcelain: High-Content Alumina and Zirconia Core-Based Ceramics
High-content alumina and zirconia core-based ceramics (In-Ceram®, Vident; Procera® All-Ceram, Nobel Biocare USA, LLC, Yorba Linda, CA; LAVA™, 3M ESPE; Wol-Ceram®, Wolz Dental-Technik GmbH, Ludwigshafen, Germany; Cercon®, DENTSPLY Ceramco; CEREC® InLab, Sirona Dental Systems USA, Charlotte, NC; Everest®, KaVo Dental Corp, Lake Zurich, IL) are highly resistant to chemical attack from HF,11,61-63 and a different approach is required if the clinician elects to bond these restorations into place using resin-based adhesives and luting cements (as opposed to conventional cementation). One method that has been shown to be quite effective in increasing bond strength to these materials is the technique of silica coating followed by silane application.61-63 One simple and effective technique uses silica-coated 30-µm aluminum oxide particles (CoJet™ Sand, 3M ESPE) followed by the application of silane. According to the manufacturer, sandblasting with this material uses “impact energy to apply a silica coating to the target surface.”64 Whether this transfer of silica is caused by particles actually becoming embedded in the target surface, actual mechanical/chemical transference (ie, tribochemistry), or both, is unclear to this author. In this author’s opinion, it is unlikely that, in the case of high alumina or zirconia cores, there is actual imbedding of silica-coated particles because of the intrinsic hardness of the target material. It may be more feasible that the silica-coated particles actually “bounce off” these ceramics, but before doing so there is an actual transference of silica from the particles to the target substrate (ie, tribochemistry). In any case, this technique has proven to be effective (more so than conventional sandblasting) not just with high-strength alumina and zirconia-based ceramics, but also when bonding to composite65,66 and metal surfaces.67-69 One can speculate that by silica-coating metal or composite substrates, not only is the surface mechanically roughened, but the number of available hydroxyl groups for surface silane coupling is significantly increased. Silica coating is not effective, or required, with conventional feldspathic porcelains simply because significant amounts of SiO2 and free hydroxyl groups are already present (much more so than metals and composites). If the dentist opts to conventionally cement zirconia or high alumina core-based crowns/bridges, silane is not required. However, this author still recommends briefly sandblasting the inner surface of the restoration under low pressure (ie, approximately 20 PSI), followed by placement with whatever conventional cement is chosen by the dentist. (This author prefers resin-modified glass ionomer cements [RelyX™ Luting Plus, 3M ESPE; FujiCEM, GC America, Inc]). Care should be taken when sandblasting these restorations, making sure to use low pressure for short time periods, as at least one study has found that sandblasting with 50-µm AL2O3 (at 40 PSI) had the potential to induce flaws in dense alumina and zirconia ceramic plates, resulting in decreased physical properties.70
Understanding All of This
After a fairly extensive literature review, numerous discussions with manufacturers, laboratory technicians, and researchers, it is apparent to this author that no single specific HF concentration and application time exists that is optimal for etching all porcelains. As a consequence, it is not surprising that currently recommended HF concentrations and application times vary significantly. It also appears that there is potential to both underetch and overetch porcelain. As Calamia suggested years ago,19 HF concentrations and application times should, ideally, be adjusted depending on the specific nature of the porcelain being treated. In this regard, dentists are somewhat at the mercy of manufacturers, and it should be incumbent on them to provide accurate and scientifically supported recommendations on precisely how to optimally treat and place their specific product(s). It is then incumbent on dentists and ceramists to actually follow these protocols. As it is, even when specific protocols do exist, this author suspects they all too often are ignored, not understood, or dentists and ceramists are simply not aware of them. In regards to etching porcelain, one goal should be to determine the time frame required, at a very specific HF concentration that will adequately etch various porcelains without excessively degrading and/or weakening the substrate.
In any case, while recognizing that exceptions are likely to exist, it is probably safe to make some generalizations regarding porcelain surface treatment.
1. It appears that low-pressure sandblasting, followed by 60 to 120 seconds of etching with 9% to 10% HF, has scientific support and validity when treating conventional powder/liquid stackable porcelains. A variation that also appears effective is sandblasting followed by 4% to 5% HF applied for 4 to 5 minutes.
2. In the case of a popular pressable ceramic (IPS Empress), the recommended treatment protocol of 5% HF applied for 60 seconds has scientific support and should be followed. The manufacturer of this particular product is one of the few that this author found to have very specific recommendations, as far as HF concentrations and application times, for a number of its bondable ceramics. Specific manufacturer recommendations for many of the other pressable and/or high leucite containing ceramics are vague, do not exist, or could not be found and/or verified by this author. Some ceramic manufacturers shift responsibility by simply recommending following the directions of the manufacturer of whatever HF-etching gel or liquid is being used. As a result, specific treatment protocols appear to be largely speculative. Perhaps these are the restorations many ceramists stated (to this author) that they simply etch until the “surface looks frosty.” While this is certainly not very scientific, and likely not optimal, in the absence of specific guidelines, it may be the best ceramists and dentists have in some situations.
3. High-strength alumina and zirconia core-based crowns cannot be etched with HF. As a result, it is not possible to “bond” these restorations with conventional HF/silane treatment. Silica coating, followed by silane application, has been shown to be a viable alternative.
4. Proper use of hydrolyzed silane, in conjunction with warm-air drying, has scientific support and is advisable after HF etching of feldspathic porcelains or silica coating of high alumina, zirconia, metal, and composite surfaces.
Two general treatment protocols successfully used by the author for surface treatment of stacked (powder/liquid) porcelain veneers before placement are presented below. These protocols may not be valid for all stacked porcelains and when available, manufacturer recommendations regarding etching times and HF concentrations should be followed. The first protocol assumes that the veneers are not etched at the dental laboratory. The advantage of this protocol is that the dentist has complete control over the surface preparation. In the second protocol, the veneers have been etched at the dental laboratory. This requires a certain degree of faith in the laboratory technician and assumes he or she has properly etched the porcelain. The author recognizes other protocols exist, are valid, and are clinically successful.
Protocol 1—Veneers NOT Etched by the Dental Laboratory
1. Try in case for fit and esthetics. Once the decision to place the veneers is made, proceed to Step 2.
2. Briefly sandblast veneers under low pressure (ie, 20 PSI) with 50-µm Al2O3 or 30-µm aluminum oxide particles.
3. Etch with 9% to 10% HF gel for 90 seconds, wash, and dry.
4. Ultrasonicate for 5 minutes in ethanol; dry well.
5. Apply one to two coats of prehydrolyzed silane and warm-air dry for 60 seconds.
6. Place a thin layer of hydroxyethylmethacrylate (HEMA)-free unfilled resin (Porcelain Bonding Resin, Bisco, Inc). Do not cure. HEMA-free resins are less hydrophilic than HEMA-containing resins and may be less prone to water sorption.
7. Fill veneers with a light-cure only resin veneer cement (RelyX™ Veneer Cement, 3M ESPE; Choice™ 2, Bisco, Inc) and bond in place. Veneer cements that have a dual-cure capacity contain tertiary aromatic amines that may discolor with time, potentially altering the shade of the veneers.71-73
Protocol 2—Veneers Etched by the Dental Laboratory
1. After receiving the veneers from the dental laboratory, inspect the inner surface. Properly etched veneers should have a dull/matt finish and no shiny areas. If the veneers have shiny areas, briefly sandblast and reetch with 9% to 10% HF for 90 seconds. If the veneers appear well etched, proceed to Step 2.

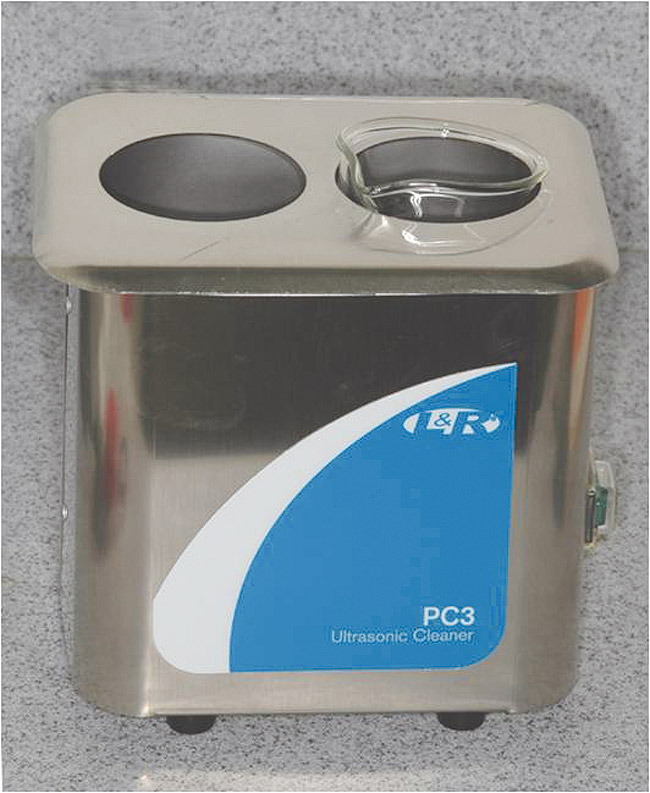

2. Ultrasonicate for 5 minutes in ethanol; dry well. (Note: an alternative to using an ultrasonic is to clean the veneers with phosphoric acid, wash, and dry.) The basic idea is to ensure a clean, fresh, high-energy surface before applying silane, as it may be possible the veneers were contaminated from normal handling and exposure at some point between the laboratory and the time of placement.
3. Before the veneers are tried in, apply one to two coats of prehydrolyzed silane and warm-air dry for 60 seconds.
4. Try in veneers to access fit and esthetics. (Note: this author rarely uses try-in pastes.) After approval, place the veneers back in the ultrasonic to remove any surface contaminates. Silane does not need to be reapplied.
5. The cleaned veneers should be dried thoroughly and brushed with a thin coat of HEMA-free bonding resin. (Note: See Step 6, Protocol 1.)
6. Perform the same as Step 7, Protocol 1.
An acceptable variation in this protocol is to try in the veneers before cleaning with phosphoric acid, ultrasonication, and application of silane.
Optimizing porcelain surfaces before treatment with various adhesives and luting resins requires an understanding of the involved substrates and materials, as well as a logical and systematic methodology in their manipulation. It is clear that while much is known, even more remains to be learned. It is hoped that this article has answered some questions, raised others, and provided greater insight into the nature of bonding to porcelain.
The author would like to thank Byoung Suh of Bisco, Inc for allowing the author unfettered use of his scientific facilities for personal testing of materials, as well as many years of mentorship, encouragement, insight, advice, and friendship.
