Noncarious cervical lesions (NCCLs) have a multifactorial etiology and result from complex interactions between corrosion (chemical degradation), stress (abfraction), and friction (toothbrush/dentifrice abrasion), all of which a restorative dentist must consider for achieving a correct diagnosis and developing a treatment plan.1,2 Erosion is a physical mechanism causing wear by friction from the movement of liquids. Tooth erosion, described as tooth surface loss (TSL), is produced by chemical or electrolytic processes of nonbacterial origin; acids are usually involved. More recently, the term erosion has been replaced by biocorrosion, which encompasses the chemical, biochemical, or electrochemical action that causes the molecular degradation of the essential properties in a living tissue.1,2
Adhesive technology has progressed considerably in recent decades and has shown that, along with excellent esthetics, it can also be used to reestablish crown stiffness while allowing maximum preservation of the residual hard-tissue structure in both anterior and posterior teeth. Adhesive technology offers two primary benefits3-5: (1) adhesive ceramic restorations can be used via an additive approach, ie, they do not require a significant amount of tooth reduction because the existing space provided by the missing tissues is utilized; and (2) conventional “resistance and retention form” principles can be omitted; instead the bonds between the porcelain and luting resin composite and between the luting resin composite and tooth are exploited.
Localized Palatal Wear/Erosion and Restorative Challenges
The palatal surfaces of anterior teeth present clinicians a threefold challenge in achieving optimal surface preparation and restoration6: (1) they offer limited stability and retention due to their concave geometry; (2) tensile stresses tend to concentrate on the concave surface; and (3) limited space is available with regard to their antagonistic dentition.
The authors suggest two treatment possibilities for managing cases on anterior palatal erosion.
Restorative Options
Three restorative options can be considered7-10:
1. Full-coverage crown preparations: The task of optimal preparation and restoration becomes even more daunting in cases of deep overbite and combined facial/palatal erosion, and, in such instances, clinicians may be inclined to attempt traditional full-coverage crown preparations. However, this approach has several disadvantages. First, such preparations sacrifice a significant amount of intact tooth structure in teeth that are already eroded and have lost the critical tooth substance needed for sufficient retention and resistance and have become short, thin, and flat. The clinician may be required to use even more invasive procedures such as intraradicular posts, thereby compromising pulp vitality and rendering the teeth nonvital. Second, this approach can lead to a higher rate of secondary caries, due to the restorative margins being on dentin that is exposed due to enamel erosion. Third, these preparations are potentially clinically less satisfactory than veneers because of the stiff metal-ceramic coping, which renders the underlying flexible tooth structure prone to fracture. Finally, there is the issue of gingival inflammation around full-coverage restorations with intracrevicular margins. Adhesive restoration margins and finish lines that can generally be left equigingival or supragingival are less likely to generate gingival inflammation compared to traditional full-crown coverage.
Hence, clinicians should mimimize the use of approaches that involve more invasive palatal reduction and consider other treatment modalities.
2. Orthodontic repositioning: Though a conservative option that can sometimes be ideal, time constraints and economic considerations may negate the use of orthodontic repositioning in many cases.
3. Enameloplasty: With the patient’s consent, performing enameloplasty on opposing teeth can provide additional space, but it may lead to hypersensitivity.
Occlusal Principles
In an effort to develop a simple, highly conservative approach to localized anterior erosion and wear, various authors have described two occlusal principles: centric relation (CR) and the Dahl principle. A combined approach accounts for a third principle.
1. Centric relation: Lucia11 first proposed the use of an acrylic jig for CR recording. The same technique was later refined to retain the space needed to allow for the placement of restorations. Cardoso et al12 proposed the use of a modified Lucia jig—an anterior deprogrammer to reposition the mandible in CR to first create some space, and then use that space to enable direct composite restorations. Because of the resilience of resin material and their ease of manipulation even in limited thicknesses, direct composites can be employed as anterior deprogrammers themselves, and, for the same reasons, can be regarded as an ideal material for palatal surface restorations.
2. Dahl principle13-16: Dahl proposed the use of an anterior bite plane in the treatment of localized anterior tooth wear. With this approach, a cast-metal appliance is used for approximately 4 to 6 months to create space by separating the posterior teeth. Posterior teeth are allowed to undergo passive eruption, and the anterior teeth experience intrusion. This combination approach reestablishes the posterior occlusion while maintaining anterior space. Now, with the availability of adhesive dentistry, direct resin composites can be used as provisional restorations and achieve the same objectives.
3. Combined clinical approach10: In severe generalized TSL, due to erosion involving anterior and posterior teeth, it may be prudent to restore the lost vertical dimension by opening the bite through the restoration of posterior teeth (ie, additive approach). This, combined with harmonizing the maximum intercuspation (MIP) with CR, provides the crucial few millimeters needed to restore lost form without aggressive tooth preparation.
A greater challenge, however, presents in cases of localized TSL on the palatal surfaces of the upper anterior teeth with little or no TSL on the posterior teeth. The use of palatal veneers utilizing a modified Dahl principle is a conservative option and is advocated in such cases whenever possible. Documented cases of successful management of these situations17 have employed a simple, additive approach using direct resin for management of localized palatal wear along with a modified Dahl principle, which allows patients to retain their residual anterior tooth structure.

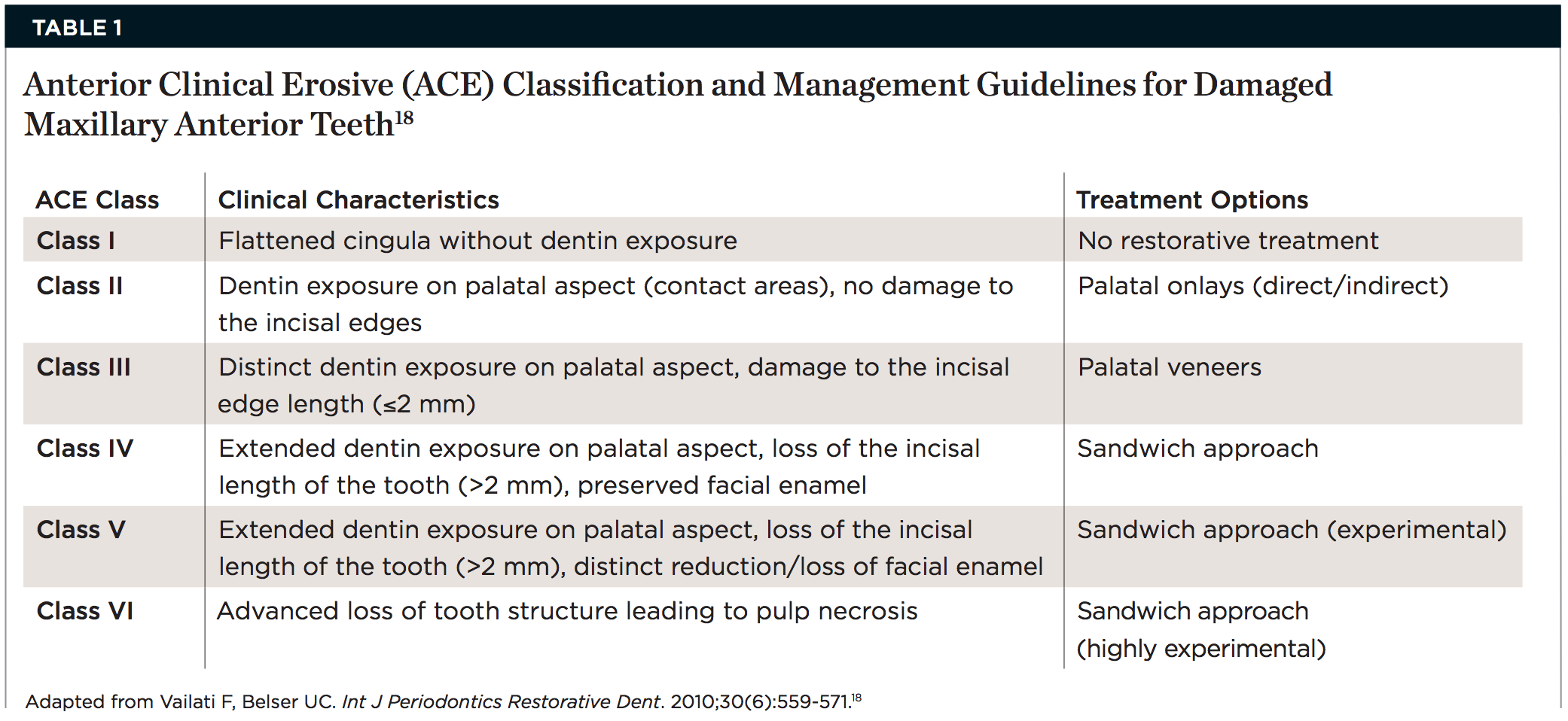

A classification for damaged maxillary anterior teeth and guidelines for their clinical management has been published18 (Table 1). The following case report discusses a comprehensive and holistic approach to restoration of maxillary anterior teeth with palatal erosion.
Case Analysis and Treatment Sequence
A combined approach of the clinical application of CR and the Dahl principle is described as follows:
A 40-year-old female patient complained of short teeth and asked for various options to improve her smile. On clinical examination, the palatal surfaces of the maxillary anterior teeth were found to be eroded, with the residual tooth structure having a smooth and shiny appearance (Figure 1 through Figure 3). In MIP, no restorative space was available, as the lower anterior teeth fit tightly into the upper palatal surfaces, making this a clinically challenging situation to treat conservatively. In most cases of conventional treatment protocols, such upper teeth are devitalized and restored with crowns that structurally leave the teeth in a compromised condition.10
A difference between MIP and CR was identified through a gentle maneuver using a Lucia jig that guided the mandible into CR (Figure 4). The upper cast was then mounted on a semi-adjustable articulator with a facebow record and the lower cast with a centric record. Articulator mounting showed that when the condyles were in CR, the teeth did not occlude in MIP. On opening the centric lock on the articulator and allowing the teeth to touch in MIP, the authors found a lack of space available to restore the palatal surfaces of the maxillary anteriors. Thus, a decision was made to keep the condylar rods in CR on the articulator, which would create some space in the anterior zone to restore the palatal surfaces of the maxillary anteriors.

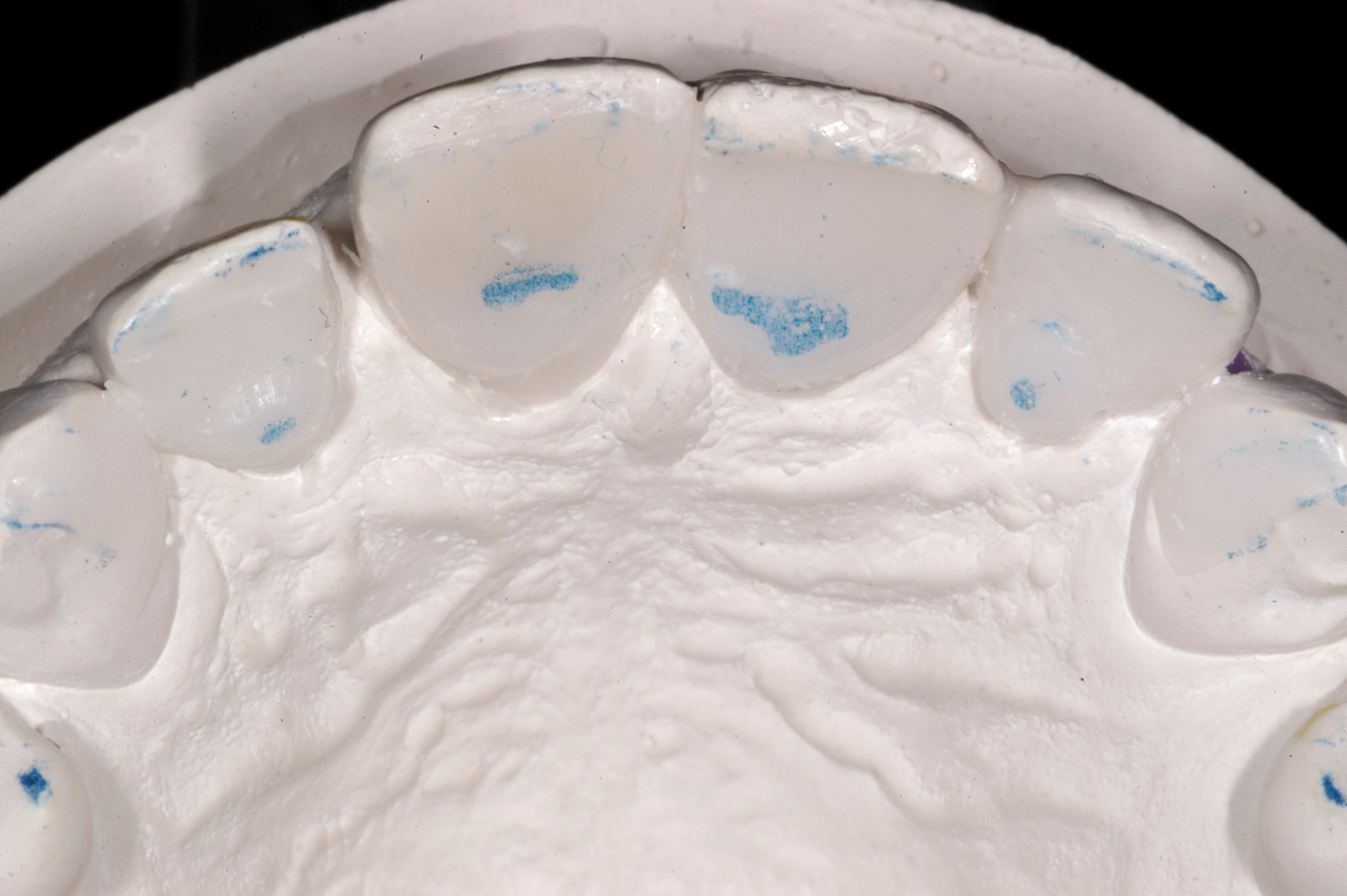

This space, acquired by recording the CR correctly, was utilized to prepare the palatal surface wax-up (Figure 5). This, in turn, opened up the posterior contacts by 1 mm. This new maxilla-mandibular relation was created intraorally and stabilized by restoring the palatal surfaces of the maxillary anteriors with palatal composite resin veneers (Figure 6 and Figure 7). The principles used here demonstrate the Dahl technique that was modified from its original version to suit the esthetic requirements of the patient and to make use of adhesive techniques with contemporary restorative resins.
The open contacts and interocclusal space created between the posterior teeth (Figure 8) resulted in supraeruption of the posteriors in approximately 4 months’ time. After supraeruption was complete, occlusal equilibration was performed to harmonize the occlusion and attain bilaterally uniform and simultaneous contacts between all posterior teeth. A labial esthetic wax-up was then fabricated for the upper anterior teeth to produce an esthetic enhancement in the smile.
A provisional was fabricated intraorally using a matrix fabricated on the wax-up (Figure 9). Once the patient approved the proposed changes in the anterior tooth form, minimalistic tooth preparations for monolithic lithium-disilicate veneers were performed (Figure 10), bearing in mind the need to keep within the facial enamel.
Monolithic lithium-disilicate pressed veneers were fabricated for the maxillary six most anterior teeth. Staining was done to achieve polychromy and subtle incisal translucency. While layering the incisal characteristics will produce a superior esthetic result, in this case it would have required reducing the incisal edges to create room for the ceramic. To prevent loss of precious tooth structure in a patient with minimal esthetic needs, the authors opted for an acceptable esthetic result of a stained veneer and, thereby, made a biologically sound restoration completely in enamel.
A few weeks later, the facial veneers were bonded directly to the underlying enamel. A postoperative photograph (Figure 11) revealed the restored harmony of the patient’s smile and the occlusal contacts in MIP (Figure 12). The palatal surfaces restored with nanofilled composite resin developed good anterior guidance that was harmonized to the patient’s chewing cycle (Figure 13 and Figure 14).19
Discussion
Prior to the emergence of adhesive technology, the clinical management of tooth erosion or biocorrosion1,2 focused primarily on biomechanical aspects alone, whereby the top priority was to achieve tooth reinforcement by extracoronal strengthening through some form of coverage (full or partial).1-9 With the development of adhesive technology, an additive approach was introduced that utilizes the existing space provided by missing tissues, preserves the residual tooth structure, and exploits the bond strength of luting resin composite that bonds the porcelain to the existing tooth structure.3-5
The unique challenges that palatal surfaces of anterior teeth typically present—ie, concave geometry, limited stability and retention, tensile stress concentration, limited space for the opposing dentition—become even more daunting in cases of deep overbite and combined facial/palatal erosion.6 Conventional full-coverage crown preparations in such cases result in further sacrifice of significant amounts of tooth structure in already damaged teeth and present other risks such as rendering the teeth nonvital and a higher rate for secondary caries.7-10
As described earlier, two occlusal principles—centric relation (CR) and the Dahl principle—were developed as simple, highly conservative approaches to localized anterior erosion and wear. With CR, an anterior deprogrammer is used11,12 to reposition the mandible in CR to create space that enables the room for direct composite restorations. Resilient and easy to manipulate, direct composites can be used as anterior deprogrammers themselves and for palatal surface restorations. The Dahl principle13-16 employs the use of an anterior bite plane in the treatment of localized anterior tooth wear, whereby a cast-metal appliance is used to create space by separating the posterior teeth, which are then able to undergo passive eruption while the anterior teeth experience intrusion. This reestablishes posterior occlusion while maintaining anterior space.
Adhesive dentistry can be used to achieve the same objectives, employing direct resin composites as provisional restorations through an additive approach. In cases of severe generalized TSL caused by erosion involving both anterior and posterior teeth, restoring the lost vertical dimension by opening the bite through the restoration of posterior teeth (ie, additive approach) may be optimal. Combined with harmonizing the MIP with CR, this strategy allows lost form to be restored without aggressive tooth preparation.10
However, the greatest challenge presents in cases of localized TSL on the palatal surfaces of only the upper anteriors, with little, if any, TSL on posteriors. The option of palatal veneers using a modified Dahl principle is conservative and encouraged in such cases whenever possible.10,17
This article presented a comparable case in which the Dahl technique was modified to suit the esthetic requirements of the patient. First, a new maxilla-mandibular relation was created intraorally, which was stabilized in the second step by restoring the palatal surfaces of maxillary anteriors with palatal composite resin veneers. The interocclusal space generated between the posteriors resulted in posterior supraeruption, which generated a new occlusion that was harmonized by occlusal equilibration. Monolithic lithium-disilicate veneers were placed on the maxillary anteriors to enhance the final smile.
Composite restoration wear was once a significant worry; that concern, though, has substantially subsided in recent years due to improved technology, which has led to enhanced formulations and significantly better products.10 For patients with no parafunctional habits, posterior composite resin wear is now considered a resolvable problem. Individuals with parafunctional habits, however, warrant careful monitoring and supplemental protection with nightguards to reduce wear-related failures.10 In addition, palatal surface composites may wear off in the medium to long term.10 However, even cases of significant palatal restoration wear can be easily managed using a conservative repair of the resin composite.
Conclusion
When warranted, use of noninvasive additive approaches should be considered before opting for traditional full-crown coverage. In eroded maxillary anterior teeth with limited palatal clearance (ie, deep bite), clinicians should first create adequate restorative space through a combined use of CR and the Dahl principle before utilizing adhesive dentistry to restore with bonded composites and porcelain veneers.
